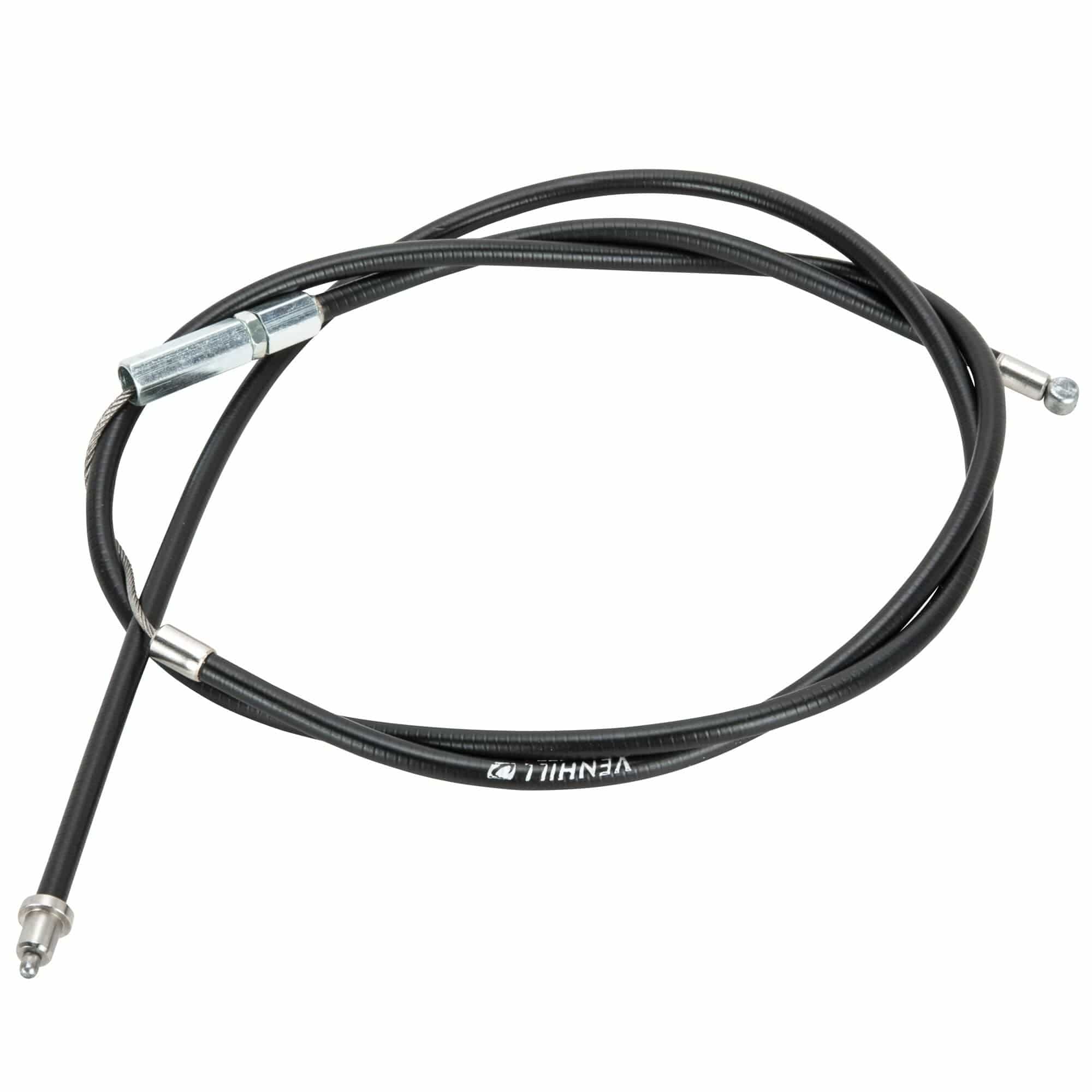

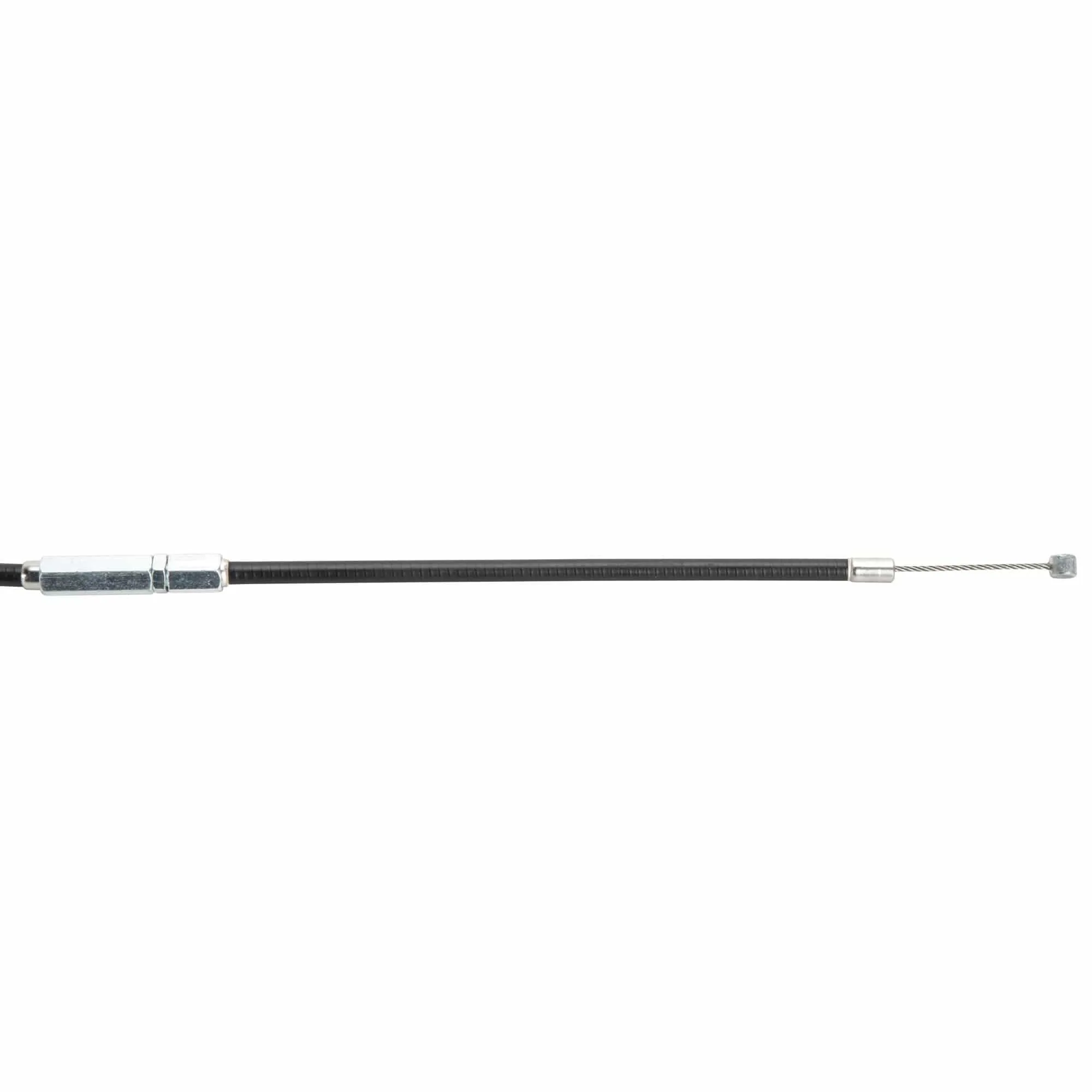

Throttle Cable 42" 1968-72 Triumph Bonneville T120R 1973-75 T140V Made in UK OEM #60-1819
This Triumph throttle cable is for 1968-72 Triumph Bonneville T120R and 1973-75 T140V with Amal concentric carburetors (928, 930, 932 etc). Sold individually. Replacement for OEM# 60-1819, for use with OEM# 99-0351 dual pull 7/8" throttle.
| THROTTLE & IDLE CABLE MEASUREMENTS | |
| Cable End Type | Push In |
| Elbow Length | N/A |
| Elbow Angle | N/A |
| Housing Length | 43" |
| Free Play | 3-3/8" |
 |
|
|
THROTTLE & IDLE CABLE MEASUREMENT DEFINITIONS See the example diagram above to see how this cable is measured. Note that the diagram is just an example, and is not a drawing of this exact cable! Also, there can be variations of these measurements by +/- .25" (6mm) due to manufacturing tolerances. Elbow Length: Overall length of elbow section, if there is one. Elbow Angle: 45 degree, 90 degree, or N/A (no elbow) Housing Length: Overall length of cable housing, not including adjuster or elbow. Measurement stops at elbow where black housing meets chrome. Free Play: The full amount of travel of the inner cable. Pull inner cable fully to one side, measure length, not including cable end (ferrule) or return spring. |
|
Original: $38.04
-65%$38.04
$13.31Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This Triumph throttle cable is for 1968-72 Triumph Bonneville T120R and 1973-75 T140V with Amal concentric carburetors (928, 930, 932 etc). Sold individually. Replacement for OEM# 60-1819, for use with OEM# 99-0351 dual pull 7/8" throttle.
| THROTTLE & IDLE CABLE MEASUREMENTS | |
| Cable End Type | Push In |
| Elbow Length | N/A |
| Elbow Angle | N/A |
| Housing Length | 43" |
| Free Play | 3-3/8" |
|
|
|
THROTTLE & IDLE CABLE MEASUREMENT DEFINITIONS See the example diagram above to see how this cable is measured. Note that the diagram is just an example, and is not a drawing of this exact cable! Also, there can be variations of these measurements by +/- .25" (6mm) due to manufacturing tolerances. Elbow Length: Overall length of elbow section, if there is one. Elbow Angle: 45 degree, 90 degree, or N/A (no elbow) Housing Length: Overall length of cable housing, not including adjuster or elbow. Measurement stops at elbow where black housing meets chrome. Free Play: The full amount of travel of the inner cable. Pull inner cable fully to one side, measure length, not including cable end (ferrule) or return spring. |
|
