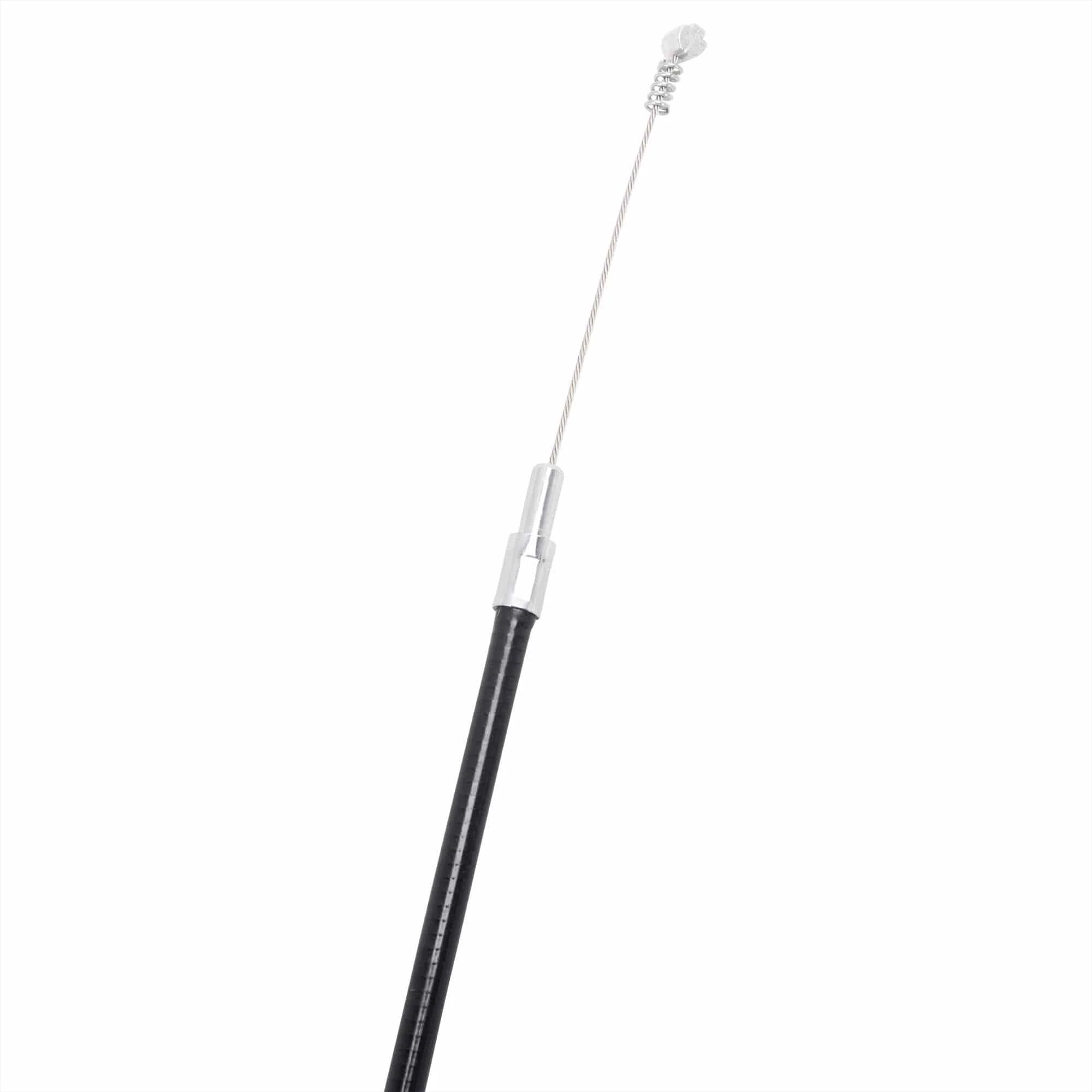

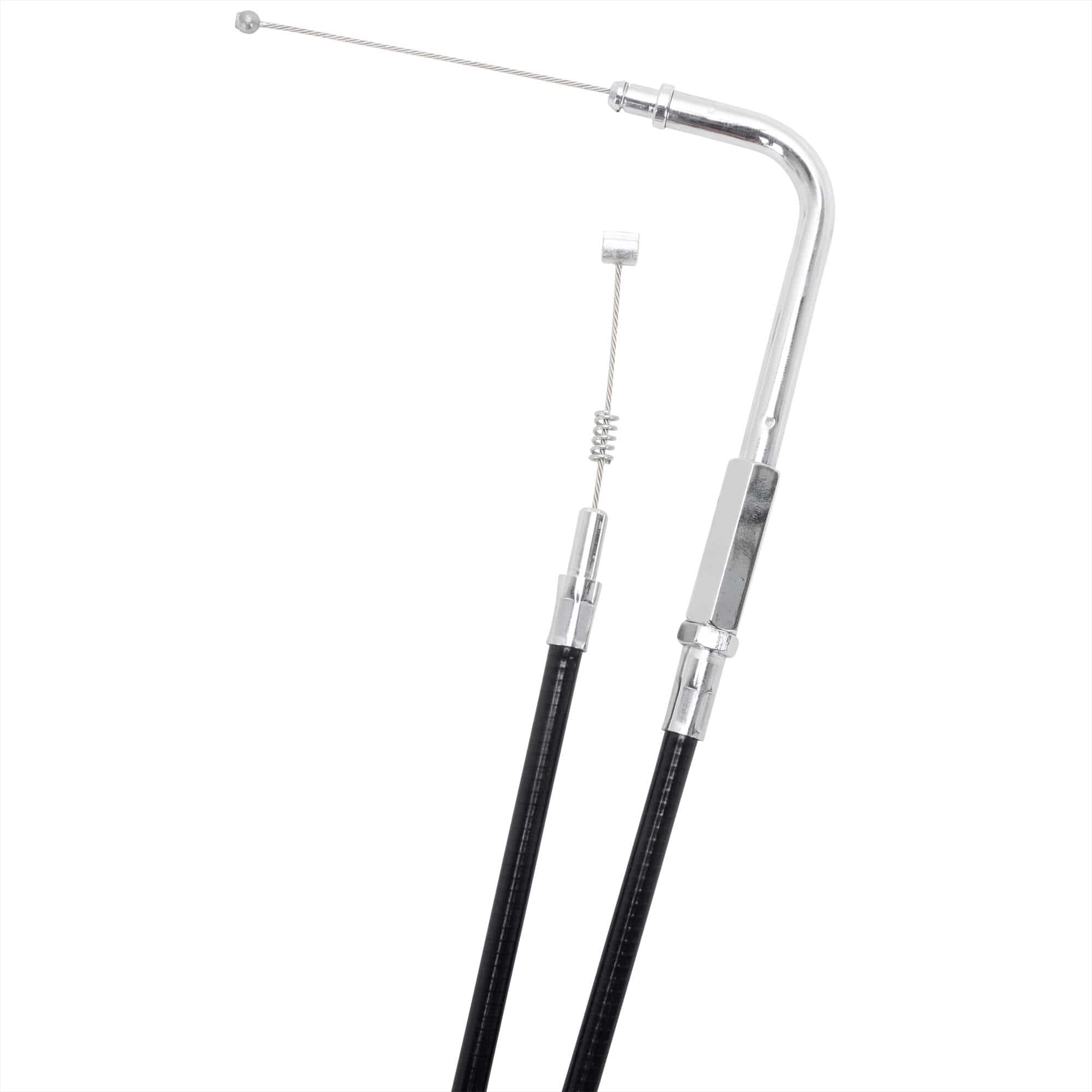

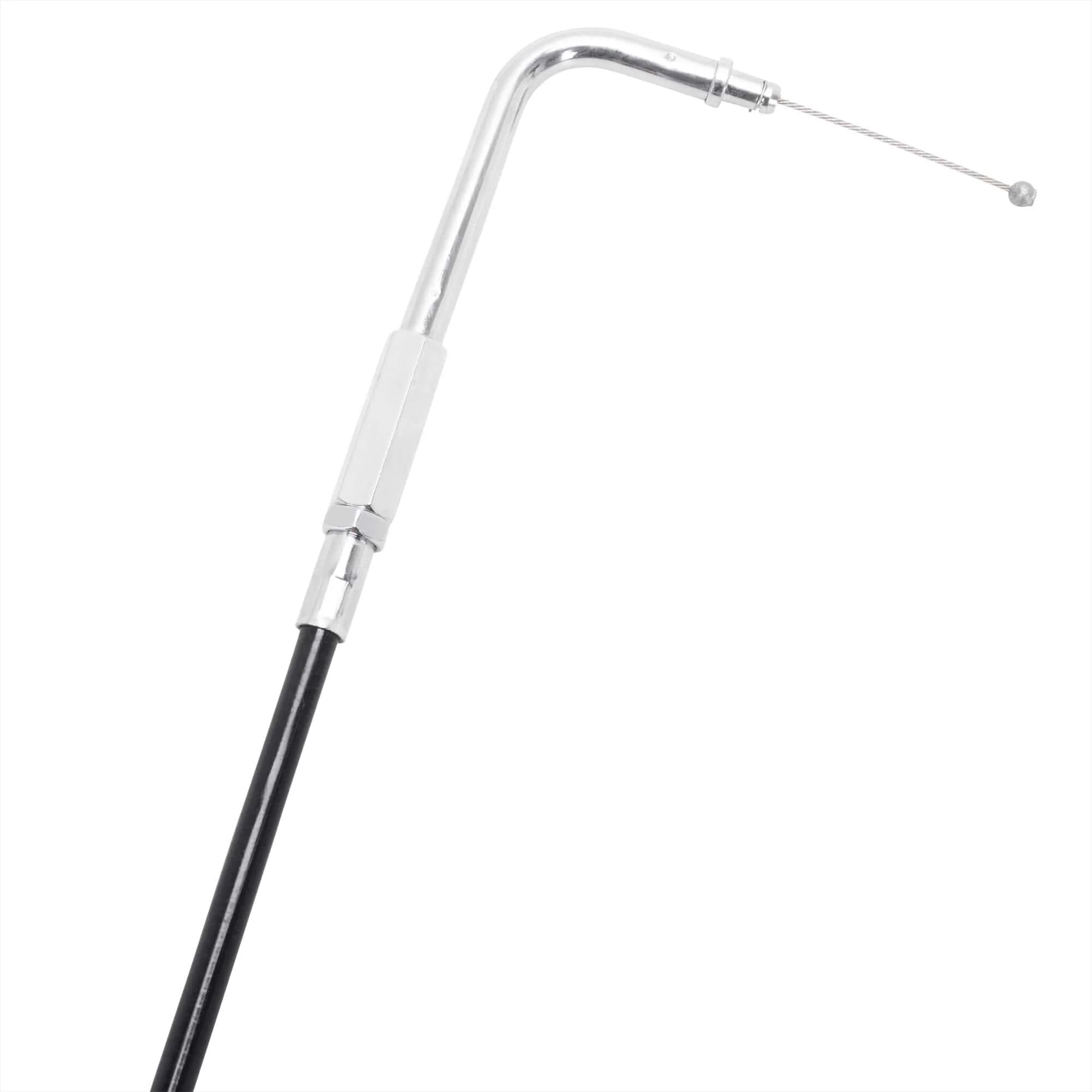

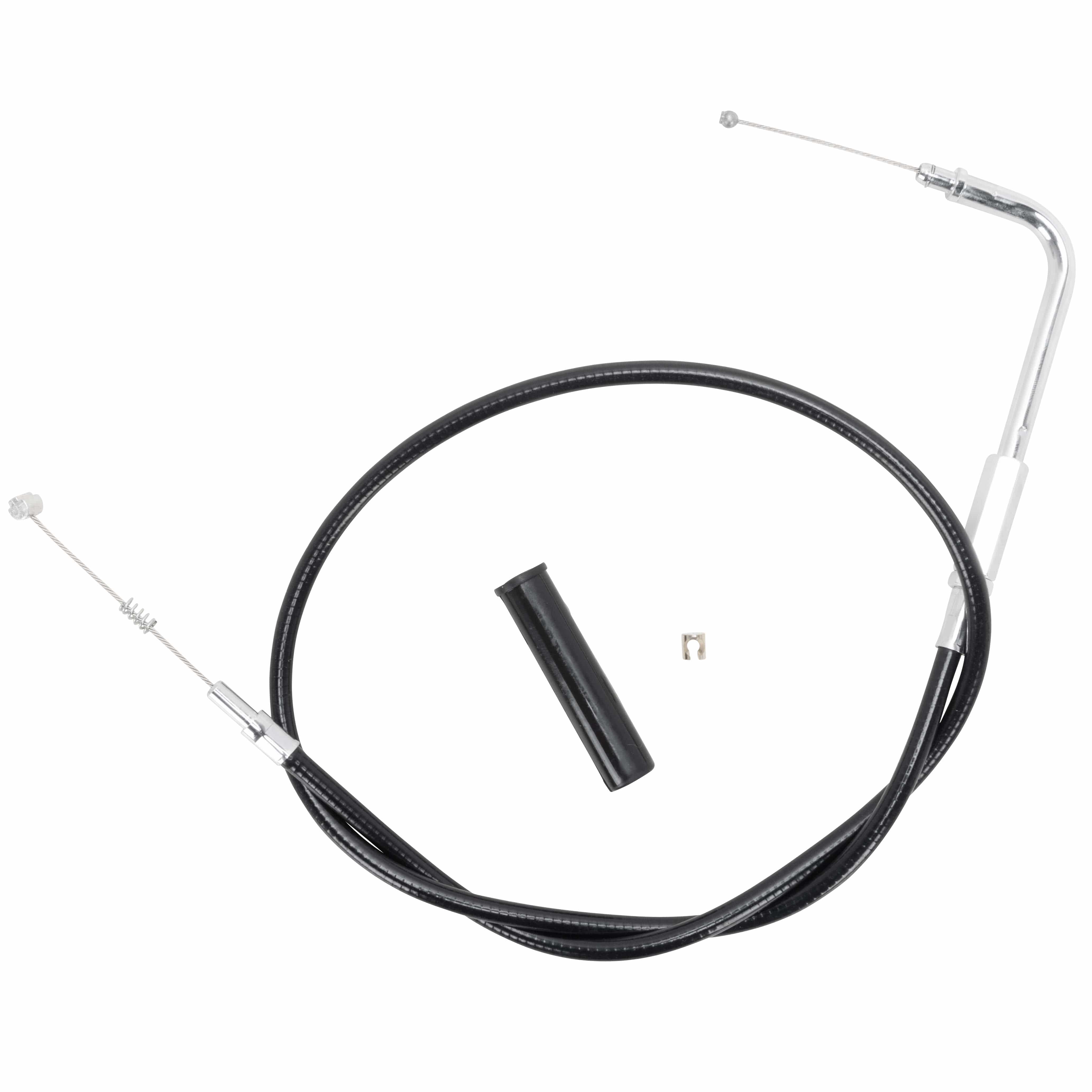

Throttle Idle Cable OEM #56634-06 Harley Dyna 2006-2013 +4 inch Extended
Top-quality, high-performance replacement throttle idle cables. For fitment see the Additional Information tab below.
- Upgraded stainless steel inner wire. Long-lasting, corrosion free.
- Traditional black vinyl-coated housing.
- Perfect replacement for OEM Harley-Davidson cables.
| THROTTLE & IDLE CABLE MEASUREMENTS | |
| Cable End Type | Push In |
| Elbow Length | 5-5/8" |
| Elbow Angle | 90 degree |
| Housing Length | 31-3/4" |
| Free Play | 4-3/4" |
 |
|
|
THROTTLE & IDLE CABLE MEASUREMENT DEFINITIONS See the example diagram above to see how this cable is measured. Note that the diagram is just an example, and is not a drawing of this exact cable! Also, there can be variations of these measurements by +/- .25" (6mm) due to manufacturing tolerances. Cable End Type: Types are 'Push In' and 'Threaded'. For Harley-Davidson throttle and idle cables 'Push In' is 1996-up, 'Threaded' style is 1995 and earlier. Elbow Length: Overall length of elbow section, if there is one. Elbow Angle: 45 degree, 90 degree, or N/A (no elbow) Housing Length: Overall length of cable housing, not including adjuster or elbow. Measurement stops at elbow where black housing meets chrome. Free Play: The full amount of travel of the inner cable. Pull inner cable fully to one side, measure length, not including cable end (ferrule) or return spring. |
|
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Top-quality, high-performance replacement throttle idle cables. For fitment see the Additional Information tab below.
- Upgraded stainless steel inner wire. Long-lasting, corrosion free.
- Traditional black vinyl-coated housing.
- Perfect replacement for OEM Harley-Davidson cables.
| THROTTLE & IDLE CABLE MEASUREMENTS | |
| Cable End Type | Push In |
| Elbow Length | 5-5/8" |
| Elbow Angle | 90 degree |
| Housing Length | 31-3/4" |
| Free Play | 4-3/4" |
|
|
|
THROTTLE & IDLE CABLE MEASUREMENT DEFINITIONS See the example diagram above to see how this cable is measured. Note that the diagram is just an example, and is not a drawing of this exact cable! Also, there can be variations of these measurements by +/- .25" (6mm) due to manufacturing tolerances. Cable End Type: Types are 'Push In' and 'Threaded'. For Harley-Davidson throttle and idle cables 'Push In' is 1996-up, 'Threaded' style is 1995 and earlier. Elbow Length: Overall length of elbow section, if there is one. Elbow Angle: 45 degree, 90 degree, or N/A (no elbow) Housing Length: Overall length of cable housing, not including adjuster or elbow. Measurement stops at elbow where black housing meets chrome. Free Play: The full amount of travel of the inner cable. Pull inner cable fully to one side, measure length, not including cable end (ferrule) or return spring. |
|
