Patent U.S. D1004492

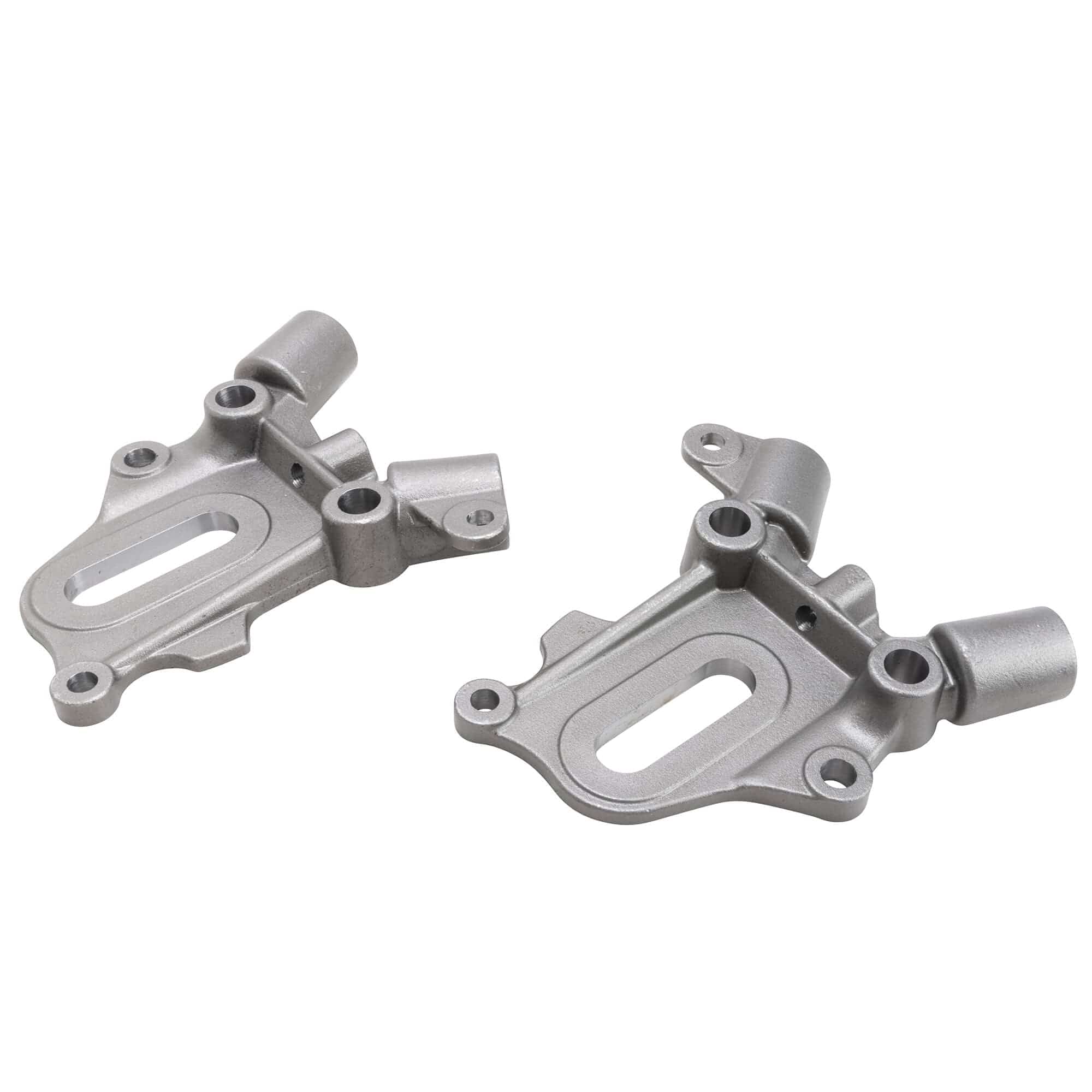

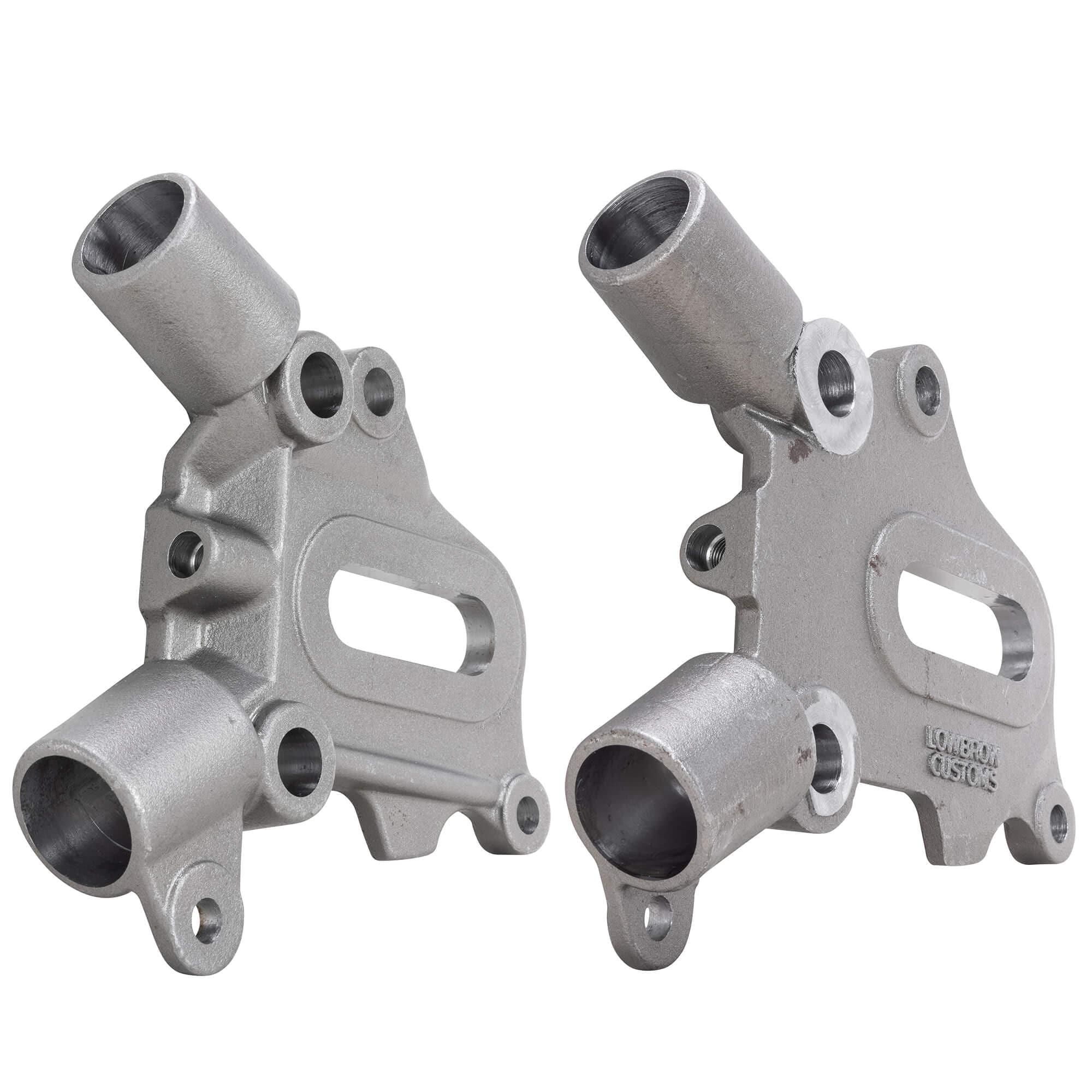

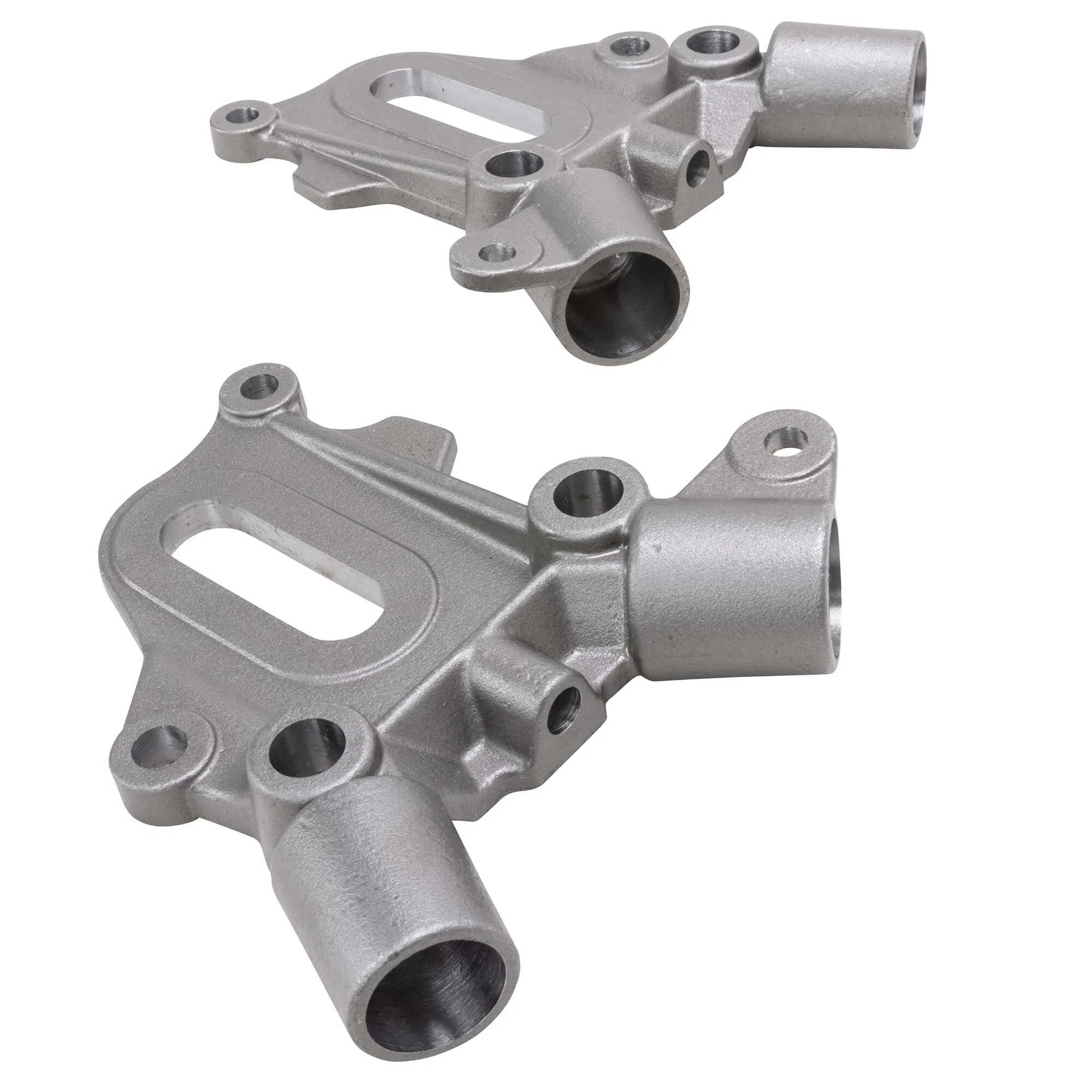

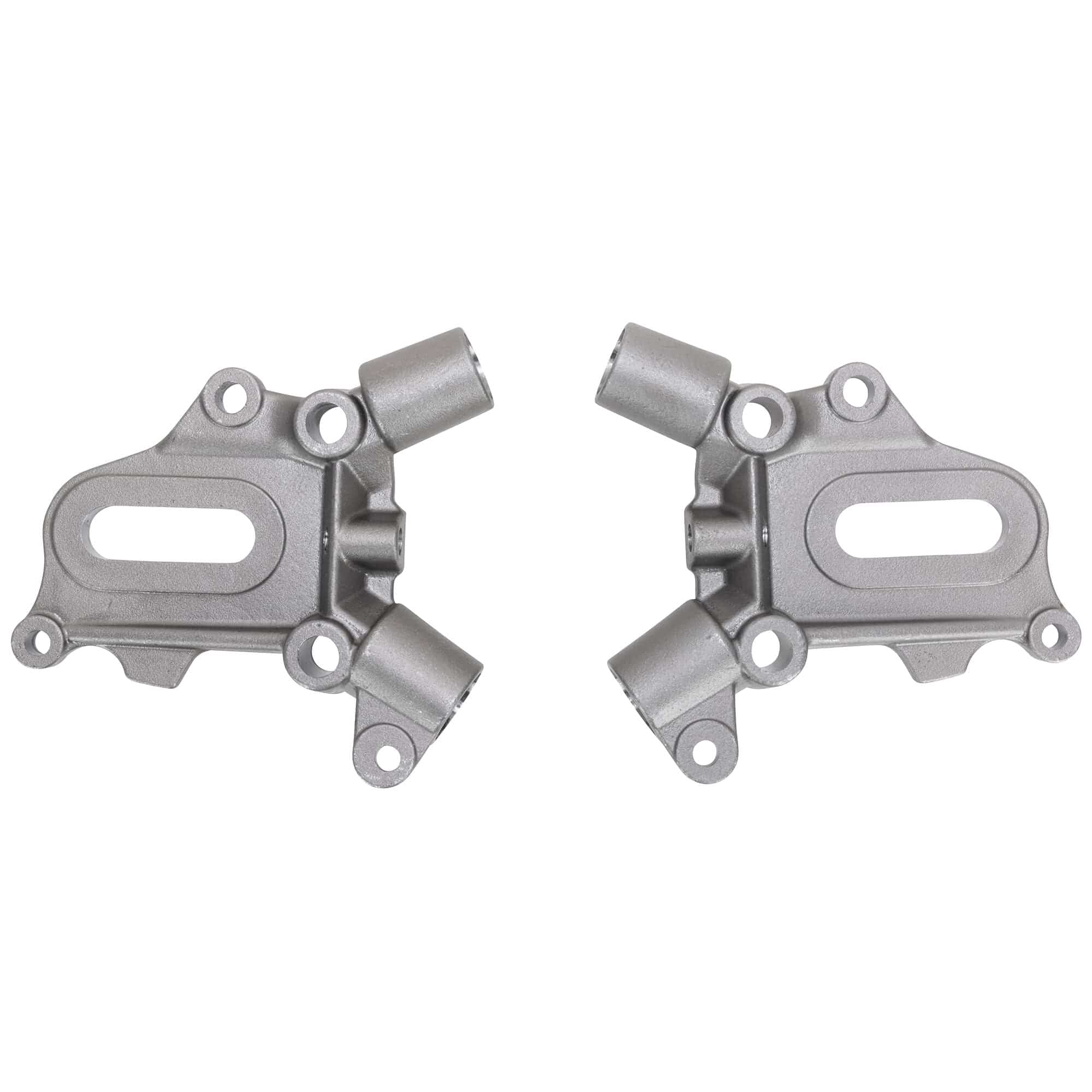

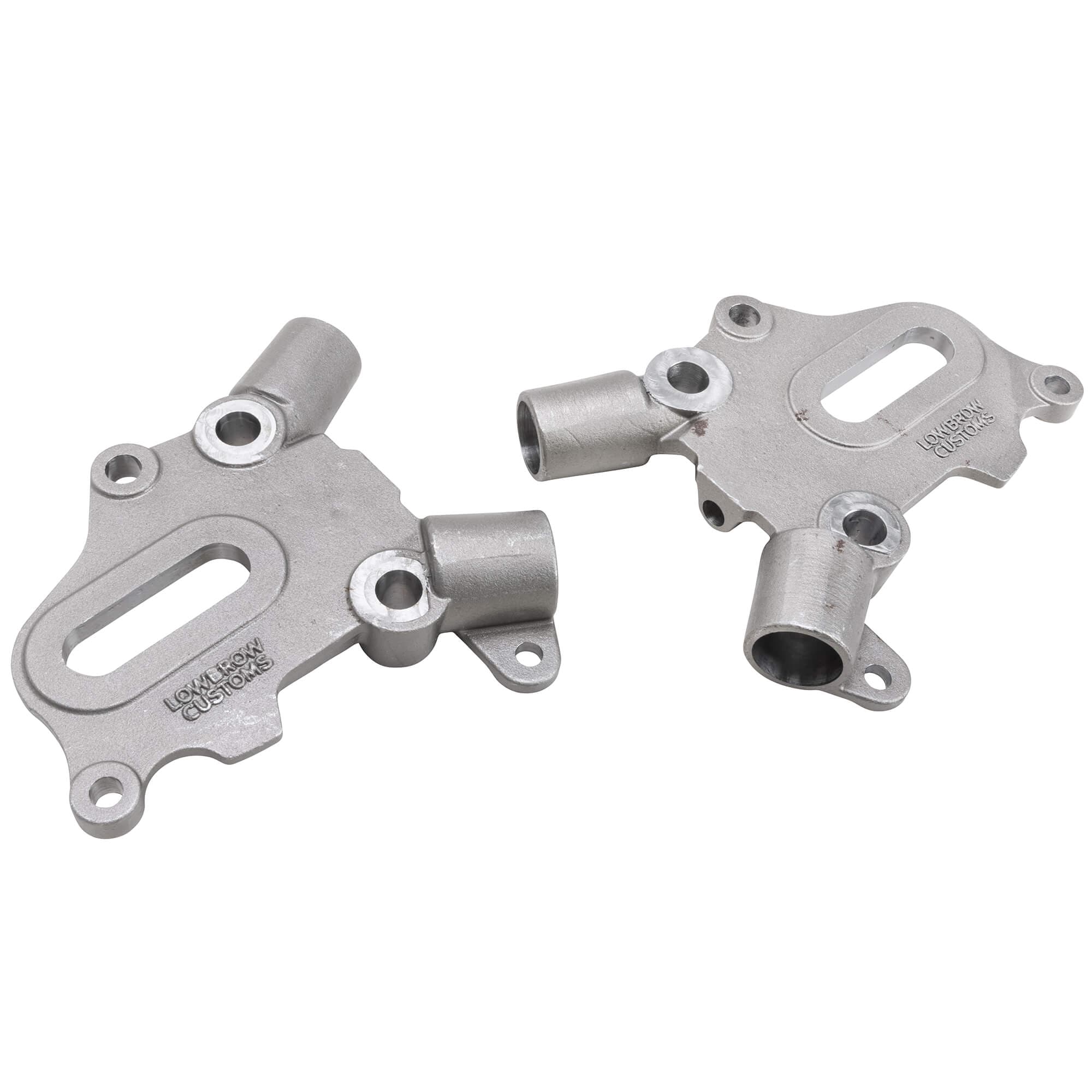

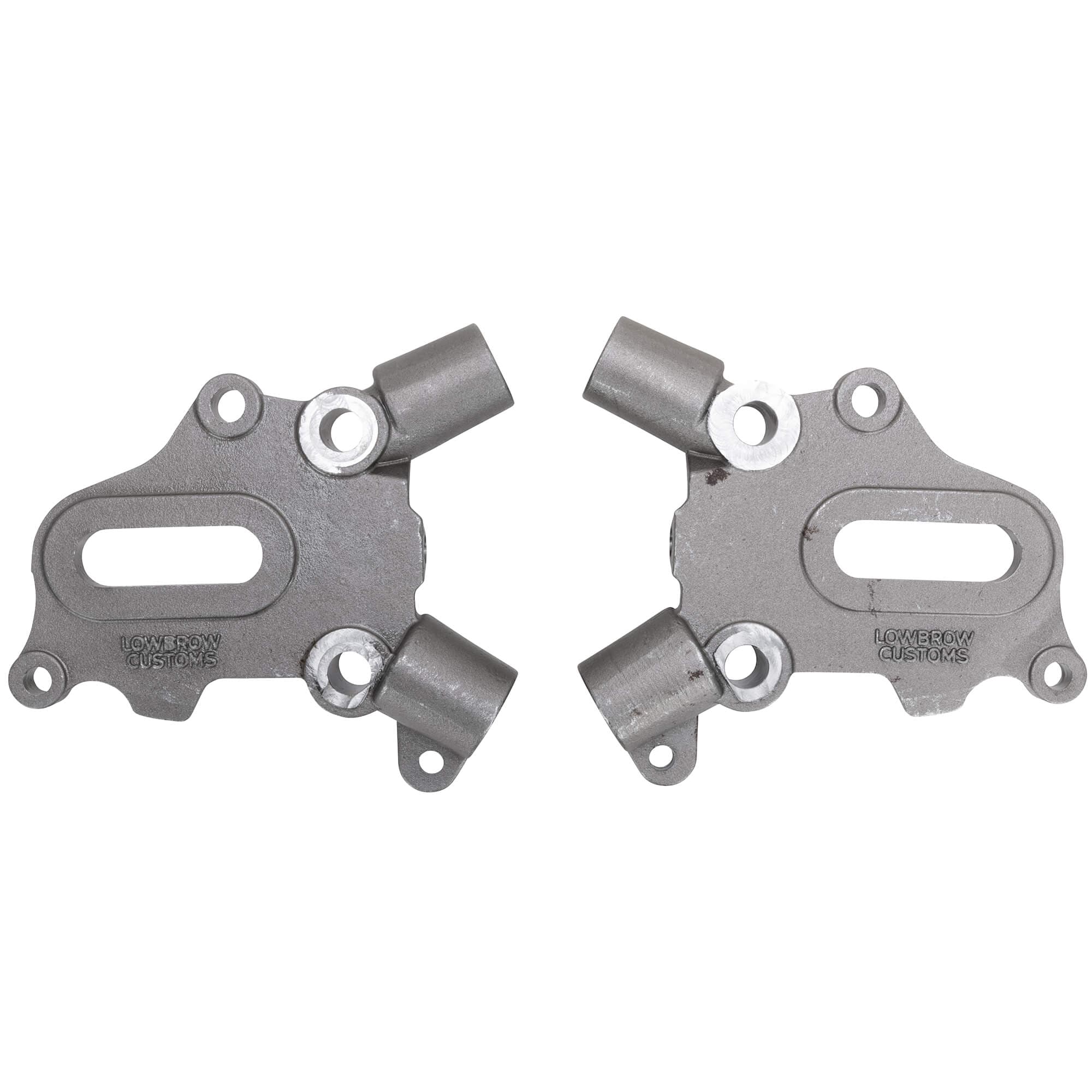

This rigid frame axle plate set is designed specifically for building custom hardtails for motorcycles with a 3/4" axle and disc brake rear wheel. The styling is taken from Harley-Davidson OEM rigid frame axle plates so they look right at home on any custom motorcycle. Included are a left and right axle plate, investment cast steel, machined and ready to go for a custom frame build. Axle plates are bare steel and oiled. The upper tubing bore accepts 1" tubing and the lower 1-1/8" tubing, perfect for that custom Shovelhead hardtail! The 3/4" axle slot offers 1-3/4" of front-to-rear adjustability and the axle plates are threaded 3/8"-24, ready for standard 1936-1972 Harley style axle adjusters (not included).
